How About Drying Effect of These Two Air Drying Equipment?

Large food industry may care more about later shelf life, and mold risk than about simple surface dryness. Here, the air-flow organization and material movement mode become critical.

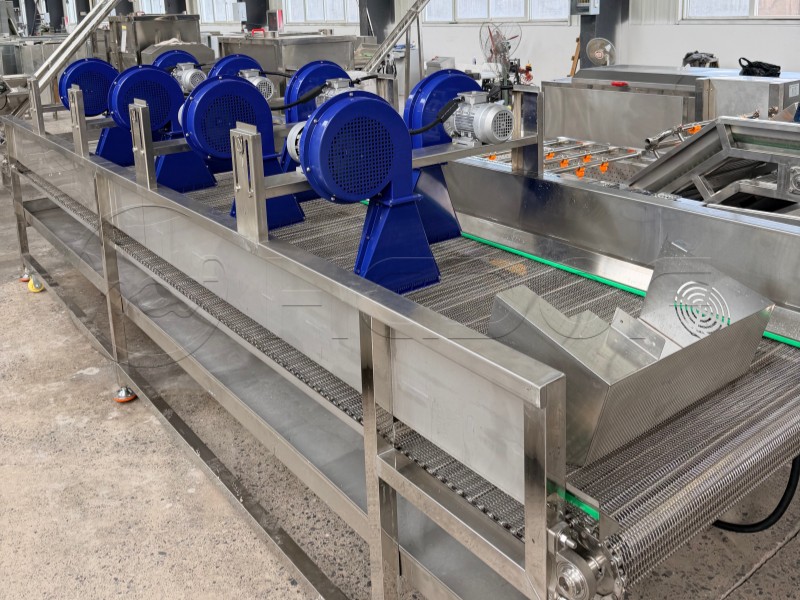

Drying Effect of Parallel Air Dryer

The parallel air dryer uses strong air knives or air ducts along the conveyor belt. When you place food in single layers with uniform thickness, the drying uniformity on the exposed surface stays very good.

Међутим, overlapping or thick piles easily cause incomplete drying. The bottom layer or covered areas may hold residual water, especially in surface recesses or under contact points. The process mainly dries the side facing the airflow, while the bottom side rests on the belt.

For many products, such as dumplings or whole fruits, this one-side drying already meets packaging or freezing requirements.
Drying Effect of Turning Air Dryer

The tumble air dryer adds continuous flipping or rolling. The machine lets the food pieces change orientation many times during the procedure. Стога, you gain an all-side air-drying effect.

For diced vegetables, fruit cubes, шкампи, or meat pieces, the turning system usually offers better overall moisture balance than simple one-direction air blowing. Customers who focus on uniform water activity and stable quality usually favor this design.

Међутим, if operators poorly control rotation speed or loading volume, you may see local damage or incomplete flipping. You’d better test real materials and then adjust process parameters.

Међутим, very brittle foods like thin fruit chips or delicate cookies often stay safer in a parallel dryer or in a specially designed low-intensity turning machine.

Ако имате питања, please contact us! Гет Куоте

How to Influence Food Quality and Production Configuration of Air Dryers?

Food processors usually balance output, quality, and downstream operations. Both drying machines affect shape, color, texture, and process synergy with washing, blanching, sterilizing, and packaging systems.

Quality Influence and Key Features

Gentle Handling of Parallel Air Dryer: The parallel air dryer keeps products almost still on the belt. The mechanical stress remains low, so the machine protects shape and prevents surface cracks. Low-temperature air treatment keeps color and flavor of fruits and vegetables more natural and reduces browning risks. You may see minor belt marks on the bottom and slightly slower bottom drying. Међутим, by optimizing air-knife angles and positions, you can minimize residual water in recesses.

Turning Air Dryer for Uniform Quality: The turning air dryer offers more uniform dryness and reduces local high moisture zones. Стога, the equipment helps prevent mold, discoloration, and texture defects in cubes or particle products. The main concern appears in possible minor surface abrasion or small edge damage due to rolling. For premium display products or very fragile foods, you need careful control of turning intensity and loading.

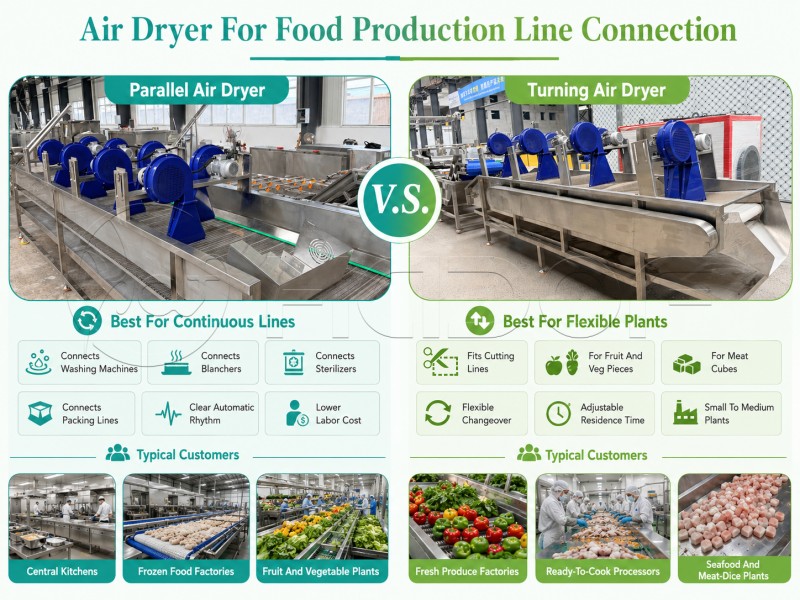

For Food Production Line Connection

Parallel Air Dryer in Continuous Processing: Parallel air dryers integrate very well with continuous food processing equipment. You can connect washing machines, blanchers, sterilizers, cooling conveyors, and automatic packing lines in sequence. This system suits:

✓Central kitchens

✓Large frozen food factories

✓Large vegetable and fruit processing plants

The production rhythm stays clear and automatic, so labor costs drop.

Turning Air Dryer in Flexible Food Plants: Turning air dryers support continuous fruit, veg, meat cubes or pieces production systems after cutting. The machine fits small to medium-size plants with many food product types. This equipment suits:

✓Mixed-product fresh produce factories

✓Ready-to-cook veg or fruit processors

✓Seafood and meat-dice processors

The process allows flexible formula changes and adjustable residence times.

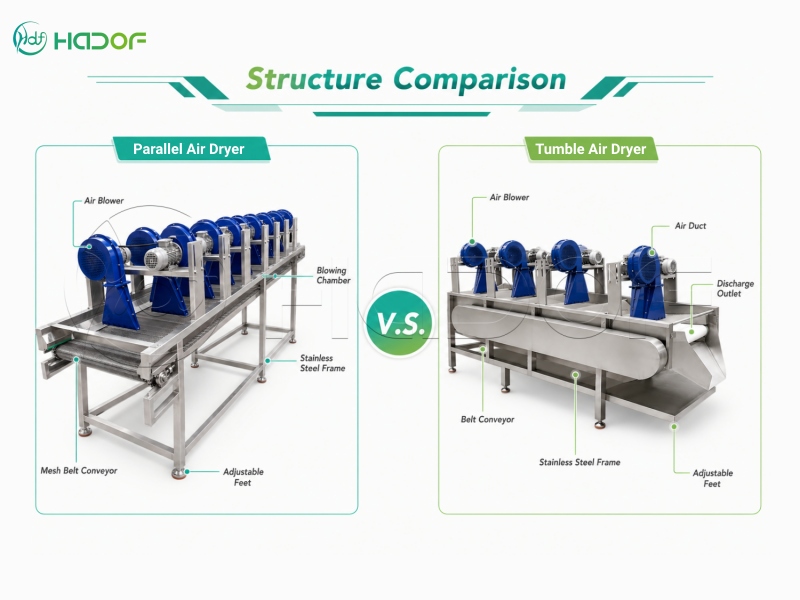

Structure and Key Components

Parallel Air Dryer Structure: The typical system contains:

✓Stainless steel frame and conveyor belt

High-pressure blower and air-knife or air-duct modules

✓Optional heating section

✓Control cabinet, frequency inverters, and safety devices

The machine structure remains relatively simple. Cleaning and maintenance focus on belts, air ducts, and inner surfaces. Main wear parts include motors, reducers, and fan bearings.

Tumble Air Dryer Structure: The turning design generally includes:

✓Rotating drum or flipping device

✓Product feeding and discharging mechanisms

✓Blower system and air distribution chamber

✓Drive motor, transmission, and control cabinet

The structure remains more complex, especially around the turning mechanism. Internal dead corners require good hygienic design. Many clients now prefer functions to reduce manual cleaning labor and contamination risk.

01 02 03

What Materials Suit Parallel and Turning Air Dryer Machines?

Every customer has different products and different factory layouts. Међутим, both air drying machines are of use moisture removal for food, воће, поврће, and various fresh produce.

Materials for Parallel Air Dryer

On one hand, parallel air dryer systems usually handle:

◆Regular-shape or stable-shape products

◆Foods that need strict appearance protection

◆На пример, customers often use a parallel air dryer machine for spherical fruits and vegetables like oranges, lemons, peaches, јабуке, kiwis, etc. Or it is of use for root vegetables after washing and removing excess water from the skin like sweet potatoes, кромпира, шаргарепе, yams, etc.

◆It even can dry shellfish and small seafood or entire wheat products such as dumplings.

These foods normally lie on a conveyor belt in single layers. In such a food production line, the parallel dryer keeps products almost static. The air-drying procedure remains gentle, so the system protects edges from chipping, avoids scraping, and maintains surface gloss. Стога, customers prefer this equipment when they process fragile but shape-stable foods and fruits or vegetables with high visual value.

Прочитајте више
Materials for Tumble Air Dryer

On the other hand, tumble air dryer machines usually suit:

◆Irregular, easy-to-heap, or multi-surface materials

◆Products that accept mild tumbling

◆Clients normally process small fruit pieces, vegetable dices, шкампи, small fish, meat cubes, and mixed veg or fruit granules.

These products need turning to avoid sticking and clumping. During the turning air drying process, the dryer keeps the material moving and flipping. The machine exposes all sides of the fresh produce to the airflow, so the moisture removal stays efficiently. Customers accept some rolling, because the products are not extremely fragile.

Прочитајте више

FAQ for Air Dryer Machines in Food Processing

Why choose parallel air dryers?

If your needs include:

✓Fast surface de-watering after washing, before packaging, смрзавање, or frying

✓Complete shape retention and high visual standard (dumplings, bread, leafy vegetables, entire fruits)

✓Large-scale continuous production and full automatic line connection

You’d better prioritize a parallel air dryer, including multi-layer designs if space is limited.
Who can buy tumble air dryer?

If your needs include:

✓Small blocks, granules, irregular particles, and materials prone to stacking

✓Multi-side uniform drying and avoidance of lumping or wet spots

✓Acceptable slight rolling and normal appearance standards

You may try a turning air dryer for better process control.
How to choose appropriate air dryer according to budget?

Parallel air dryers often show:

✓Lower equipment price for the same capacity

✓Lower maintenance cost

✓Lower energy consumption for surface drying

Turning air dryers often show:

✓Slightly higher machine price due to more complex structure

✓Higher value for multi-surface uniform drying

✓Better overall product stability for diced or granular materials

If your budget focuses on rapid payback and high-volume surface water removal, you may choose a parallel system. If your business depends on quality uniformity of fruit or veg cubes, seafood pieces, or mixed ingredients, you may find a turning air dryer more cost-effective in the long run.
